We are also procuring a line of raw material from Nippon Techno-Carbon, Japan which is of High Density and generally referred to as Isostatic Graphite.
The application for this grade is specific to industries and applications like:
• Diamond Tool Pressure Sintering
• Die Moulds
• Continuous Casting Dies for Aluminium, Copper and Brass
• Degassing Rods

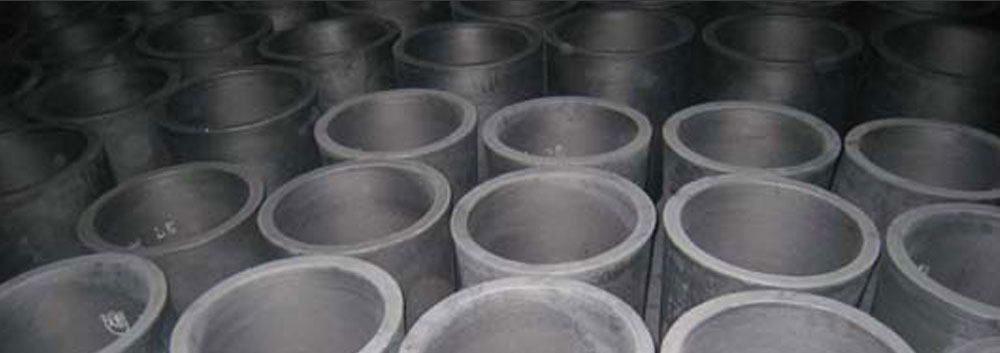

• Crucibles and Sealing Rod
• Semi Conductor applications
• Solar Technology applications
Isostatic High Density Graphite Grades available are as below:
|
| |
| Grade |
IGS - 743
Isostatic |
IGS - 844
Isostatic |
| Bulk Density (gm/cc) |
1.80 |
1.85 |
| Max Grain Size (mm) |
0.05 |
0.02 |
| Specific Resistance (µ Ω-m) |
35 |
42 |
| Shore Hardness |
60 |
78 |
| Tensile Strength (MPa) |
35 |
42 |
Bending Strength
(MPa) |
54 |
64 |
| Thermal Conductivity (W/mK) |
128 |
80 |
Coefficient of
Thermal Expansion (x10-6 /K) |
4.8 |
5.4 |
| Ash
(%) |
0.05 |
0.05 |
| Merits |
High Strenth CIP material, Less Expensive |
High Density, High Strength, High Specific Resistance |
|
|
|
|
